Long-period Ocean-bottom Motions Observed by DONET

Long-period Ocean-bottom Motions Observed by DONET
—Significant impacts of oceanic sediment layers in source area of large subduction earthquakes on development of long-period ocean-bottom motions—

Dr. Takeshi Nakamura at the Japan Agency for Marine-Earth Science and Technology (JAMSTEC: Asahiko Taira, President) and his team has analyzed data obtained by DONET (Dense Oceanfloor Network System for Earthquakes and Tsunamis)⁽¹⁾ during a moderate earthquake (Mw 5.8, depth 11 km) occurred in Awaji Island on April 12, 2013 (20:33 UTC). They demonstrated that long-period motions⁽²⁾ are developed in extensive areas of deep ocean-bottom areas around the Nankai Trough. This work was carried out in collaboration with researchers from Okayama University, Tokyo Institute of Technology and University of Fukui.

In the event of a large earthquake, high-rise buildings generally swing and sway because of resonance phenomenon associated with long-period ground motions. While such long-period ground motions have often been observed in plain and basin areas on land, long-period ocean-bottom motions have only been suggested indirectly by simulation results reproducing land data. In this study, Dr. Nakamura and his team showed observational evidence for long-period ocean-bottom motions from strong-motion data obtained by DONET. Their simulations for seismic waves with a supercomputer K⁽³⁾ also reproduced characteristics of observed long-period ocean-bottom motions. These large-scale simulations demonstrated that low-velocity oceanic sediment layers around the Nankai Trough areas significantly contribute to the development of long-period ocean-bottom motions.

Long-period waves generated in ocean bottom areas can propagate to lands where a human being lives. Also, these long-period components are likely to affect data analysis of earthquake source elements such as magnitude and mechanisms. Further understandings of the long-period ocean-bottom motions may lead to more accurate prediction of ground motions in land areas and also contribute to improving source analysis schemes by using ocean-bottom data.

These study results were published in the Nature Publishing Group's online scientific journal, Scientific Reports on November 30, 2015.

In this study, land station data from K-NET and KiK-net operated by National Research Institute for Earth Science and Disaster Prevention (NIED) were used. The simulations were carried out using the supercomputer K at the RIKEN Advanced Institute for Computational Science (AICS), as part of Project 1, "Improvement of earthquake prediction accuracy" (Managing Director: Prof. Takashi Furumura, The University of Tokyo) in HPIC Strategic Program for Innovation Research Field 3, "Advanced Prediction Researches for Natural Disaster (JAMSTEC acting as strategic organization)."

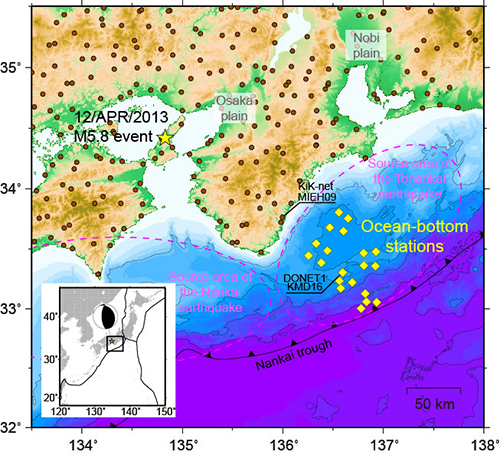

Figure 1. Location map
The yellow star indicates the epicentre of the 2013 inland event (Mw 5.8). Yellow diamonds and brown circles indicate ocean-bottom (DOENT1) and land stations (K-NET and KiK-net), respectively.

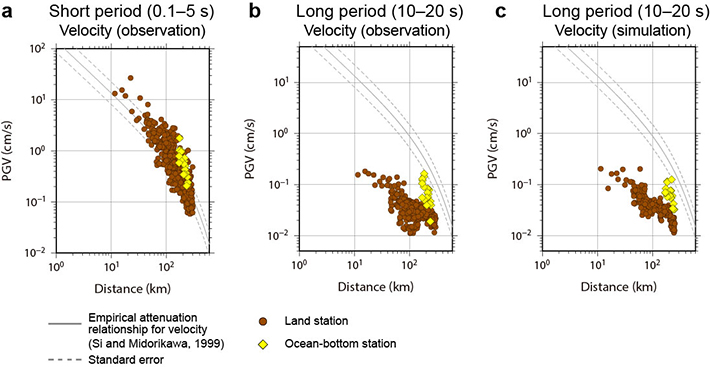

Figure 2. Estimated peak ground velocity (PGV) versus hypocentral distances
Yellow diamonds and brown circles indicate PGVs at ocean-bottom (DONET1) and land stations (K-NET, KiK-net), respectively. The figure (a) shows short-period PGV, in which no distinct differences bewteen ocean bottom and land stations are observed. However, long-period PGV indicates larger amplitude at ocean-bottom stations, which deviates from distribution at land stations (b). It means that ocean-bottom motions are larger than ground motions even when the hypocentral distance is the same. Similation results also demonstarted it (c).

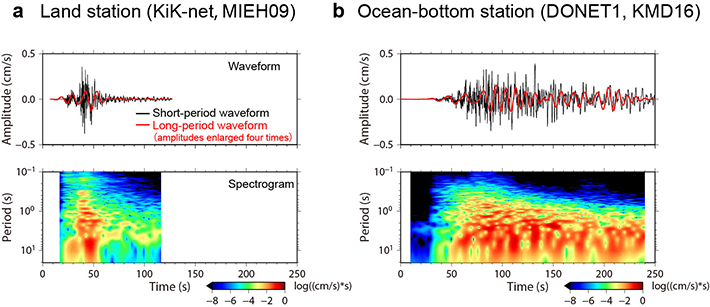

Figure 3. Observed velocity waveforms and spectrograms at land(a) and ocean-bottom(b) stations
Compared to resuts at land stations, those at ocean-bottom stataions show that both velocity waveforms and their spectrograms indicate large amplifications and prolonged motions in the period band of 10–20 s, which confirms characterstics of long-period motions.

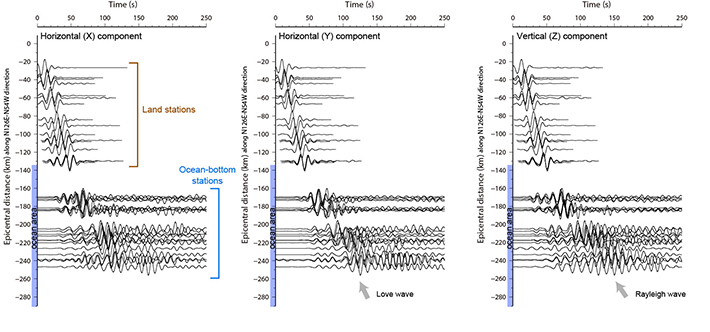

Figure 4. Observed long-period velocity waveforms versus epicentral distances
Black traces represent observed velocity waveforms for the radial (left), transverse (middle), and vertical (right) components in the period band of 10–20 s at land and ocean-bottom stations, in order of epicentral distance. Blue bars in the vertical axis indicate ocean areas.
While the waveforms at land stations are simple motions with a rapid decay after the peak, those at ocean-bottom staions show prolonged motions.

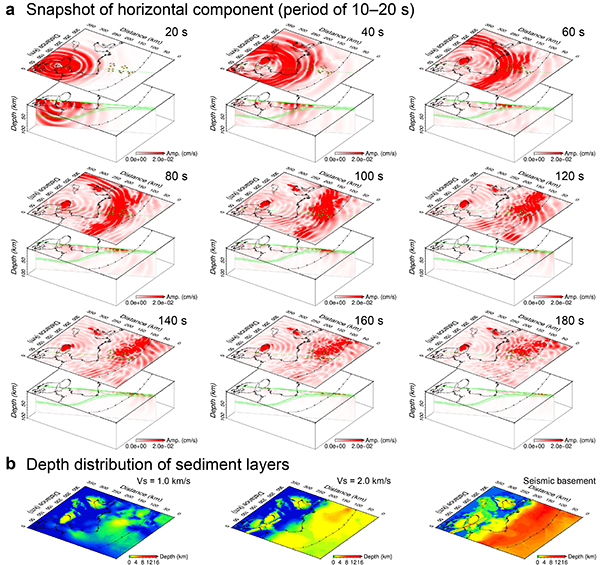

Figure 5. Snapshots of seismic wave propagation in the period band of 10–20 s (a) and sediment layers model (b)
Large amplitude (shown in red colour) and prolonged motions are found not only in the Osaka and the Nobi Plain but also in oceanic areas around the Nankai Trough. Land and oceanic areas where such distinct long-period motions are found correspond to distribition of thick sediment layers with low seismic veolocity.

Reference

Authors:	Takeshi Nakamura1, Hiroshi Takenaka2, Taro Okamoto3, Michihiro Ohori4 and Seiji Tsuboi1
Affiliation:	1JAMSTEC, 2Okayama University, 3Tokyo Institute of Technology, 4University of Fukui
Title of original paper:	Long-period ocean-bottom motions in the source areas of large subduction earthquakes
Journal:	Scientific Reports
DOI :	10.1038/srep16648
