Amorphous oxides: new semiconductors for next-generation electronic devices

RSS

Published: August 31, 2011

The details of research

Amorphous oxide semiconductors (AOSs) were developed in 2004 by Kenji Nomura, Toshio Kamiya, Hideo Hosono and colleagues. The demonstrated performance of thin film transistors (TFTs) 1 using (AOSs) is 10 times higher than current amorphous Si TFTs, suggesting the potential of the new material in flat panel displays2.

Electronic devices require very uniform and stable operation characteristics. This is particularly challenging for organic-LED displays, which must have a threshold voltage shift well below 0.1 V. Light illumination, a typical condition for operating flat panel displays, also makes device stability hard to achieve.

Now, Toshio Kamiya, Kenji Nomura, Hideo Hosono and their students at the Materials and Structures Laboratory, Tokyo Institute of Technology, have unveiled details of the electron transport mechanisms, atomic and electronic structures, and several modes of defects and impurities in AOSs that are related to instability issues.

They fabricated amorphous In-Ga-Zn-O TFTs with an Y2O3 passivation layer. Using hard X-ray photoemission spectroscopy they found that the amorphous In-Ga-Zn-O layers have high-density deep defect states near the top-most surface, and these cause instability under illumination with visible light. Forming the passivation layer eliminated these defects, producing highly-stable TFTs with a negligible threshold voltage shift for visible light illumination under bias tests3.

These results point out the importance of deep defects in AOSs, and assist commercialization of high-performance flat panel displays including organic LEDs and flexible displays.

Reference

1)
K. Nomura, H. Ohta, A. Takagi, T. Kamiya, M. Hirano and H. Hosono
Room-temperature fabrication of transparent flexible thin-film transistors using amorphous oxide semiconductors
Nature 432, 488-492 (2004).
2)
Sharp to Commercialize World's First Small- and Medium-Size LCD Panels using Oxide Semiconductor
JCN Newswire April 21 (2011)
http://japancorp.net/Article.Asp?Art_ID=23827outer
3)
K. Nomura, T. Kamiya and H. Hosono
Highly stable amorphous In-Ga-Zn-O thin-film transistors produced by eliminating deep subgap defects
Applied Physics Letters 99, 053505 (2011).
Affiliation: Materials and Structures Laboratory, Tokyo Institute of Technology

High stability is obtained for an Y2O3-passivated amorphous In-Ga-Zn-O thin-film transistor.

High stability is obtained for an Y2O3-passivated amorphous In-Ga-Zn-O thin-film transistor.

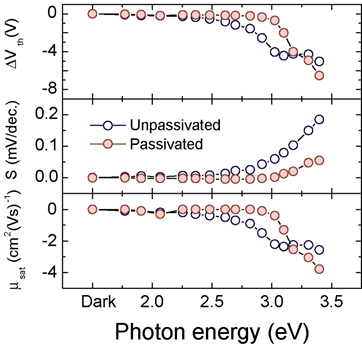

Y2O3 passivation improved the threshold photon energy for instability due to light illumination.

Y2O3 passivation improved the threshold photon energy for instability due to light illumination.

A model of the negative-bias light-illumination instability.

A model of the negative-bias light-illumination instability.
