Chitinase as “burnt-bridge” Brownian monorail efficiently hydrolyzing recalcitrant biomass


Published: September 20, 2018

Serratia marcescens Chitinase A (SmChiA) is a molecular motor efficiently hydrolyzing recalcitrant crystalline chitin by moving on the surface processively. By using gold-nanoparticle probe, researchers revealed 1-nm stepping motion of SmChiA rectified forward by fast catalysis. X-ray crystallography and molecular dynamics simulation also revealed that motion of SmChiA is driven by the Brownian motion. The results show SmChiA is "burnt-bridge" Brownian ratchet monorail, and give an insight to design engineered and artificial molecular motors.

Nano-monorail SmChiA

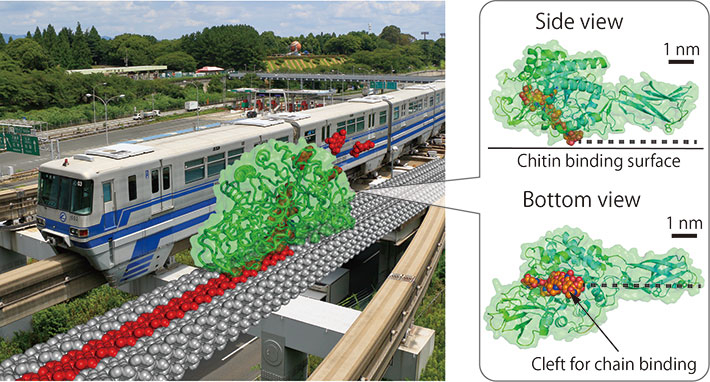

Figure 1. Nano-monorail SmChiA

Fictional image of a billion-times magnified SmChiA moving on crystalline chitin like monorail car (left panel) and chitin binding surface and cleft of SmChiA (right panel). SmChiA moves along with single chain of chitin (shown by red) and cut the chitin (rail) into soluble disaccharides.

Molecular motors convert various types of energies into unidirectional mechanical motion. Most of biomolecular motors working in the cell use adenosine triphosphate (ATP) as the chemical energy source. Recently, however, Serratia marcescens chitinase A (SmChiA) has been rediscovered as a molecular motor working in extracellular environments without using ATP. Similar to a monorail car (Fig. 1), SmChiA has cleft-like polysaccharide binding sites and processively hydrolyzes recalcitrant crystalline chitin, a major biomass on earth next to crystalline cellulose, to a water-soluble disaccharide chitobiose. As a tool of biomass conversion to useful chemicals, SmChiA has been extensively studied.

During the processive catalysis and movement on crystalline chitin surface, SmChiA keeps binding with single chitin chain in the catalytic cleft and repeats chemical and mechanical steps. In the chemical step, glycosidic bond is first cleaved and intermediate structure of substrate is hydrolyzed. The reaction product, chitobiose is then released, and the next chitobiose unit is peeled from the crystal surface (decrystallization) accompanied with the forward step. Considering the size of the reaction product chitobiose (~1 nm), SmChiA is expected to move with 1-nm step sizes. Therefore, a single-molecule imaging technique with high precision and speed had been required to resolve the single steps coupled with catalysis.

To understand operation mechanism of fast catalysis and unidirectional motion of SmChiA, Nakamura and co-workers in the Institute for Molecular Science (IMS) analyzed elementary steps of movement coupled with catalysis, using high-precision and high-speed single-molecule imaging probed with gold nanoparticle. They verified fast unidirectional movement (~50 nm s-1) with 1-nm forward and backward steps, consistent with the length of the reaction product chitobiose. Analysis of the kinetic isotope effect revealed that hydrolysis is much faster than decrystallization. Much larger forward step ratio than backward step ratio is explained by the competition between the catalysis (86%) and backward movement (14%), indicating that the movement is rectified forward by fast catalysis (Fig. 2). This is so called "burnt-bridge" mechanism, removing the rail for backward movement and forcing a molecule to move forward.

Motion and scheme

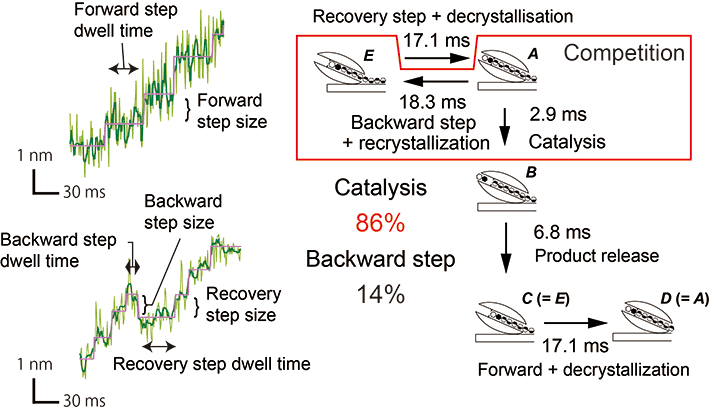

Figure 2. Motion and scheme

SmChiA shows 1-nm forward, backward, and recovery steps of motion (left). The ratio of catalysis and backward step calculated from time constants were 86% and 14%, respectively, indicating fast catalysis rectify the Brownian motion along chitin chain (right).

Furthermore, by the collaboration between IMS and Tokyo Institute of Technology, SmChiA was shown to be a "burnt-bridge" Brownian-ratchet, verified by X-ray crystallography and molecular dynamics simulation of the intermediate structures during sliding movement. Decrystallization of single chitin chain is the rate-limiting step of movement achieved by binding free energy at the product binding site, indicated by comparison of free energy differences estimated by the single-molecule analysis with crystalline chitin and theoretical calculation of the binding energy with soluble oligo-saccharide.

The finding demonstrates how SmChiA controls the Brownian motion and extracts fast unidirectional motion for continuous degradation of crystalline chitin without dissociation. The strategy evolved by SmChiA can be applied not only to engineer chitinases and cellulases for more efficient chitin and cellulose degradations, but also to design fast-moving artificial molecular motors such as DNA walkers.


Authors :
Akihiko Nakamura, Kei-ichi Okazaki, Tadaomi Furuta, Minoru Sakurai, Ryota Iino
Title of original paper :
Processive chitinase is Brownian monorail operated by fast catalysis after peeling rail from crystalline chitin
Journal :
Nature Communications
Affiliations :

Institute for Molecular Science, National Institutes of Natural Sciences,

Department of Functional Molecular Science, School of Physical Sciences, The Graduate University for Advanced Studies (SOKENDAI),

School of Life Science and Technology, Tokyo Institute of Technology,

Center for Biological Resources and Informatics, Tokyo Institute of Technology,
