Mathematical monotsukuri: Summing a constant may help to detect synchronized brain activity

RSS

Published: February 15, 2019

Scientists at Tokyo Tech found a simple, yet effective, way to improve how synchronization is measured in chaotic systems. The technique consists in adding a constant parameter to the "analytic signals" in a way that emphasizes certain aspects of their timing. This could help improve brain-computer interfaces, which are meant to aid disabled people.

An added constant highlights differences in synchronization

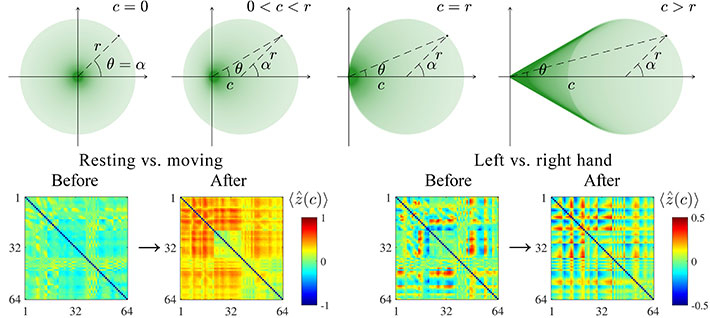

Figure 1. An added constant highlights differences in synchronization

Summing a constant parameter c warps the phase α into angle θ, according to a relationship that quickly becomes intricate (top). When this operation is applied to electroencephalogram signals, it seems to more clearly reveal the differences in synchronization while either resting or imagining to move a hand and while imagining to move either the left or the right hand (bottom).

Humans are good at detecting whether separate things happen simultaneously, for example, if two lights flash together or not. When two swings move with a regular motion, it is easy to tell whether there is any temporal relationship or "synchronization." However, the trajectory of some objects, such as kites, can be very complicated but still exhibit some pattern, even though our eyes may fail to follow it; such systems are called "chaotic." In physics, chaos does not mean lack of order; it indicates the presence of a very complicated type of order. Such situations can be found across very different scenarios, including the activity of neurons.

When trajectories, which do not necessarily correspond to physical movement and can instead represent electrical signals, are sufficiently complicated, it becomes challenging to determine if they are synchronized. In many cases, only some aspects of their motion might be interrelated. Hence, measuring synchronization is difficult and has been the subject of research for decades.

Usually, when a trajectory approximately repeats itself in a loop, it is useful to consider at what point of this cycle the system we are observing is at a given time; we call this its "phase." Meanwhile, when a trajectory is irregular, the size of the loop also changes and each cycle may be larger or smaller than the previous one; this is called the "amplitude." These two aspects are independent and can be extracted from any signal via a mathematical trick called the "analytic signal."

Measuring whether the phases of two systems are related ("phase locked") is crucial across many areas. Obtaining the degree of phase locking between all possible electrode combinations represents a good way of guessing what someone is thinking about via voltages measured on their scalp in an electroencephalogram. Such techniques are not yet very detailed but can detect some forms of imaginary movements to help drive devices that aid disabled people.

However, these brain-computer interfaces are generally slow and not accurate enough. Now, researchers in Japan, Poland and Italy propose a new approach to measuring the synchronization between electroencephalogram signals. This research was the result of a collaboration between scientists from Tokyo Institute of Technology, in part funded by the World Research Hub Initiative, the Polish Academy of Sciences in Krakow, Poland, and the University of Catania, Italy.

The idea is straightforward and consists in adding a constant after calculating the "analytic signal"; this effectively has a warping effect, as shown in Figure 1. One consequence of this is that synchronization between the phases and amplitudes of two signals is captured jointly in a way that depends on the value of this added constant.

The research team first analyzed the effects of adding this constant in simple theoretical systems before moving on to more representative cases, such as a network of transistor oscillators. Then, they applied their approach to a dataset of electroencephalogram signals for which users were told to either rest or imagine moving their left or right hand. The added constant clearly helped the team measure the synchronization between electrodes, ultimately allowing them to increase the classification accuracy for these imaginary actions.

Although simple, the approach resulted in significant improvements in the cases analyzed by the team. In future works, they will continue to investigate this method so that it hopefully has an impact in practical applications.

Reference

Authors :
Ludovico Minati,1,2,3,* Natsue Yoshimura,4,5 Mattia Frasca,6 StanisŁaw DroŻdŻ,2,7 and Yasuharu Koike4
Title of original paper :
Warped phase coherence: An empirical synchronization measure combining phase and amplitude information
Journal :
Chaos
DOI :
Affiliations :

1 Tokyo Tech World Research Hub Initiative—Institute of Innovative Research, Tokyo Institute of Technology

2 Complex Systems Theory Department, Institute of Nuclear Physics—Polish Academy of Sciences (IFJ-PAN)

3 Center for Mind/Brain Sciences (CIMeC), University of Trento

4 FIRST—Institute of Innovative Research, Tokyo Institute of Technology

5 PRESTO, JST

6 Department of Electrical Electronic and Computer Engineering (DIEEI), University of Catania

7 Faculty of Physics, Mathematics and Computer Science, Cracow University of Technology
