Exploring defects in nanoscale devices for possible quantum computing applications

RSS

Published: October 19, 2016

Researchers at Tokyo Institute of Technology in collaboration with the University of Cambridge have studied the interaction between microwave fields and electronic defect states inside the oxide layer of field-effect transistors at cryogenic temperatures. It has been found that the physics of such defect states are consistent with driven two-level systems possessing long coherence times, and that their induced dynamics can be coherently and independently controlled. Due to the nature of this work, it is hoped that such results will contribute to the field of correlated electronic glassy dynamics in condensed matter physics; give a better understanding of charge noise effects in mesoscopic devices; and enable new studies for developing novel technologies in the important field of semiconductor-based quantum information processing.

Defect states acting as electron traps in oxide-semiconductor interfaces usually are sources of noise and tend to reduce the performance of nanoscale devices. Such defect states can modify the electrostatic environment experienced by conducting electrons, forcing them to percolate through nanowire-like pathways at low enough temperatures. This effectively allows a detection mechanism of the occupation of such trap sites by the current measured in the conduction channel. Such effect is normally observed as random telegraph noise (RTN), which corresponds to the incoherent emission and capture of electrons in the trap states, mediated by the thermal background.

Motivated by the big changes in the conductivity caused by RTN in field-effect transistors (FET), scientists at the Quantum Nanoelectronics Research Center, Institute of Innovative Research (Tokyo Tech), the Center for Advanced Photonics and Electronics (University of Cambridge), and Cavendish Laboratory (University of Cambridge) investigated possible mechanisms in which the occupation of defects states could be both observed and dynamically mediated by means of coherent microwave fields. Working at cryogenic temperatures, it was found that the dynamics of such trap states are consistent with two-level systems (TLS), in which the energy levels are discrete and only the two lowest are accessible within the energy of the excitation signal. A TLS can represent the basis for a quantum bit implementation.

From the microwave spectroscopic signature of the response of the FET used in this work, displaying a great number of high-quality factor resonances (Q > 104), the extracted coherence times observed in this study are considerably longer, by almost three orders of magnitude, than other defect-based implementations of TLS. Performing single-pulse experiments gives the possibility to study the dynamics of the trapped electrons, which have been found not to depend on the chemistry of the dielectric used. And using a standard Ramsey protocol, coherent control was achieved. Furthermore, employing an optical master equation that captures the dynamics of the trapped electrons and a physical model based on linear response theory, it was possible to reproduce the experimental behavior observed in the experiments.

Furthermore, it was found that the defect states are relatively well protected against phonons, explaining the long decoherence times measured, and that the main source of back-action could be related to long-range Coulombic interactions with other charges. Finally, since each resonance can be addressed independently in frequency space, the wide distribution of long coherence times observed, and the quasi-uniform density of states measured, it is hoped that this work could motivate the possibility to use such systems as quantum memories or quantum bits in future quantum information processing implementations.

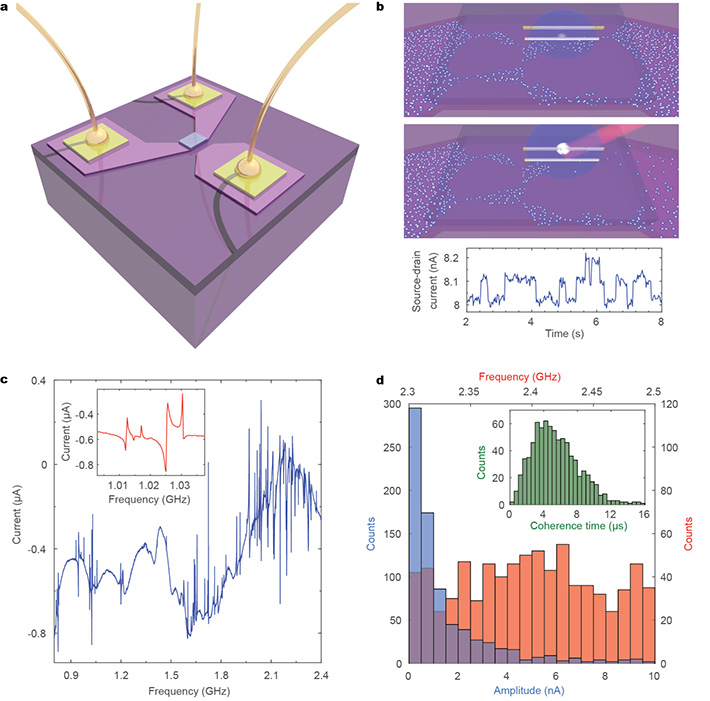

(a) Schematic representation of the FET device used in this work. (b) Schematic diagram of the interaction between the trapped electron and the percolation pathways mediated by the MW field (top). Multilevel RTN events recorded in the FET current measured at 80 K (bottom). (c) Wideband CW microwave spectroscopy of the FET channel current performed at 4.2 K. Each narrow spike is a separate resonance that is resolved into a Fano or Lorentzian shape at higher resolution (inset). (d) Density of states (red), amplitude change (blue) and coherence times (inset) histograms.

Figure. (a) Schematic representation of the FET device used in this work. (b) Schematic diagram of the interaction between the trapped electron and the percolation pathways mediated by the MW field (top). Multilevel RTN events recorded in the FET current measured at 80 K (bottom). (c) Wideband CW microwave spectroscopy of the FET channel current performed at 4.2 K. Each narrow spike is a separate resonance that is resolved into a Fano or Lorentzian shape at higher resolution (inset). (d) Density of states (red), amplitude change (blue) and coherence times (inset) histograms.

Reference

Authors:
Jaime Oscar Tenorio-Pearl1, 2, Ernst David Herbschleb1, Stephen Fleming2, Celestino Creatore3, Shunri Oda1, William Milne1, 2, and Alex Chin3
Title of original paper:
Observation and coherent control of interface-induced electronic resonances in a field-effect transistor
Journal:
Nature Materials
DOI :
Affiliations :
1Quantum Nanoelectronics Research Center, Tokyo Institute of Technology
2Electrical Engineering Division, Department of Engineering, University of Cambridge
3Cavendish Laboratory, University of Cambridge
