The World's First Pneumatic Endoscope Manipulator Holds Promise for Quality Surgery

RSS

Published: August 4, 2015

The World's First Pneumatic Endoscope Manipulator Holds Promise for Quality Surgery
— University-Launched Venture Releasing Revolutionary Surgical Assist Robot —

Riverfield Inc. will begin selling in August the world's first pneumatically controlled surgical assist robot that can smoothly manipulate endoscopes to increase a surgeon's control and precision.

Riverfield, a Tokyo-based venture company (president: Daisuke Haraguchi) launched by Tokyo Institute of Technology (Tokyo Tech) and Tokyo Medical and Dental University (TMDU), has built a compact, lightweight and easy-to-use surgical assist robot called EMARO. EMARO will be marketed by Tokyo-based Hogy Medical Co. (president: Junichi Hoki), Japan's top maker of medical equipment.

EMARO resulted from more than 10 years of research on pneumatic, ultra-precision manipulation by Associate Professor Kotaro Tadano of Tokyo Tech's Precision and Intelligence Laboratory and Professor Kenji Kawashima of TMDU's Institute of Biomaterials and Bioengineering.

Background of EMARO development

Minimally invasive operations are rapidly gaining popularity over traditional surgery as they promise rapid post-operative recovery and leave much smaller scars. Particularly popular are operations that employ endoscopes.

An endoscope-based surgical operation requires a second doctor to serve as scopist, one who is skilled at controlling the device. Such surgeries present unique risks, such as communication difficulties between the operating surgeon and the scopist, or camera shake. New equipment is needed that can overcome these problems. At the same time, conventional motor-driven endoscope manipulating robots are not ideal in terms of operational subtlety and delicacy, paling in comparison with pneumatically driven models.

Basic description of EMARO

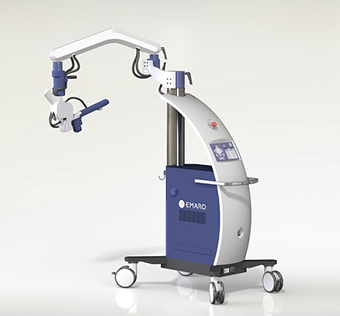

EMARO (exterior view)

EMARO (exterior view)

EMARO controls the endoscope by sensing vertical and horizontal movements of the surgeon's head, through a gyroscope that is worn on the forehead. The endoscope has four degrees of freedom for movement: forward and backward (insertion and removal), up and down, left and right, and rotation. The surgeon directs this motion by controlled movements of his head and by operating switches with his feet.

Until now, pneumatic manipulation technologies have not been able to provide the smooth and continuous movement needed for highly precise control of surgical devices. Professors Tadano and Kawashima overcame this hurdle by creating an advanced model with continuous air pressure control and an original manipulation technique. Their success owes much to Tokyo Tech Professor Toshiharu Kagawa, who had scored impressive results over decades of research in the field of fluid measurement and control.

Pneumatic driving makes it possible for robots to move gently and smoothly. It has been used extensively in industrial robots, particularly for grasping and holding objects. Moreover, the pneumatic approach makes it possible to create a compact and lightweight design; sufficient power can be obtained by injecting or extracting air through a cylinder no larger than a standard syringe — about 10 mm in diameter.

Consequently, the operating surgeon can receive clear endoscopic images without camera shake, resulting in more precise surgeries. Also, EMARO, taking the role of a scopist, can be useful in smaller hospitals that have a shortage of doctors, allowing more patients to undergo laparoscopic surgery.

What comes next?

EMARO is the first in a series of surgical assist robots that will use ultra-precision pneumatic manipulation technology. Development is now underway for a system that uses the pneumatic drive design and incorporates forceps. As its primary feature, this system will be able to detect the force exerted on the forceps through air pressure, and will feed this sensory information back to the operating surgeon. This is called force sensing.

With surgical assist robots, the surgeon sits in front of a console placed off the patient, and operates the controls with both hands. While observing endoscope images, the surgeon can manipulate forceps and the endoscope. With force sensing, the surgeon will feel as if he were directly working on the patient, which is likely to help improve surgical accuracy.

Endoscope operating procedures

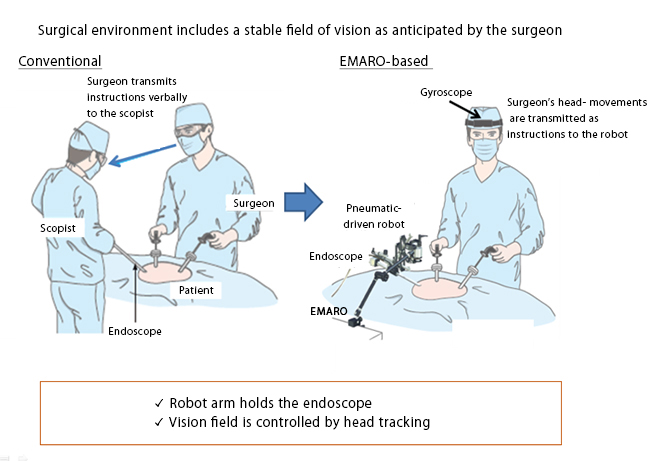

Figure1. Endoscope operating procedures

Specifications of EMARO

Item
Description
Note
Product name
Endoscope holder EMARO

Model
EMR-RS01

Product summary
Specific medical equipment for maintenance purposes
Notification acceptance number: 13B3X10174000001
Category 5: optics equipment
Market
Japan

Driving technology
Pneumatic-driven

Degree of movement
4 degrees (vertical, lateral, longitudinal, rotational)

Dimensions
732mm (W) x 1,743mm (D) x 1,933mm (H)
At full length
Weight
125kg
Excluding accessories
Rated voltage/Frequency
AC100V; 50/60Hz

Operational interface
  • Head sensor (vertical, lateral)
  • Foot switch (longitudinal, rotational)
  • Manual switch (vertical, lateral, longitudinal, rotational)
  • Console panel (vertical, lateral, longitudinal, rotational)

Range of speed
5 speeds for each axis of motion
Controlled on the console panel
Clinical areas for use
Respiratory surgery, general surgery, urology, gynecology

Applicable endoscope
Commercially available rigid models (φ10mm, φ5mm)
Parts available for fixing the stroboscopic camera head

Riverfield Inc.

Founded :
May 20, 2014
Address :
7-3-4, Nishi-Shinjuku, Shinjuku, Tokyo
Capitalization :
210 million yen
President :
Daisuke Haraguchi
No. of employees :
16
Business line :
Development and marketing of medical equipment, including surgical assist robots
History :
  • Launched by Tokyo Tech researchers, including Visiting Professor Kenji Kawashima (TMDU professor) and Associate Professor Kotaro Tadano, as a venture firm to provide a wide range of surgery-support robots based on their original technologies for pneumatic high-precision manipulation.
  • The company dates to the project to develop minimally invasive surgical robots using precision gas control technology (lead researcher: Prof. Tadano). This was part of the Ministry of Education, Culture, Sports, Science and Technology's Program for Creating Start-ups from Advanced Research and Technology (START). START aims to translate university R&D results into practical applications.
  • Riverfield has full support from JAFCO Co., Ltd., a private equity company, as promoter of its businesses.

Further information

Tokyo Institute of Technology
(Center for Public Affairs and Communications)

Email media@jim.titech.ac.jp
Tel +81-3-5734-2975 / Fax +81-3-5734-3661

Tokyo Medical and Dental University
(Public relations group)

Email kouhou.adm@cmn.tmd.ac.jp
Tel +81-3-5803-5011 / Fax +81-3-5803-0272

Riverfield Inc.

Email info@riverfieldinc.com
Tel +81-3-5332-8250 / Fax +81-3-5332-8251
