Published: September 13, 2022
Furthering the visualization of intracellular dynamics for therapeutic applications, a Tokyo Tech research team has now demonstrated precise imaging of endogenous proteins in live cells using an antigen-binding fragment (Fab)-based Quenchbody (Q-body). The Q-body probe shows antigen-dependent response and a switchable (on-off) fluorescent signaling, enabling the visualization and sorting of cells expressing p53, a tumor suppressor biomarker protein.
Recent advances in imaging technology have made it possible to visualize intracellular dynamics, which offers a better understanding of several key biological principles for accelerating therapeutic development. Fluorescent labeling is one such technique that is used to identify intracellular proteins, their dynamics, and dysfunction. Both internal as well as external probes with fluorescent dyes are used for this purpose, although external probes can better visualize intracellular proteins as compared to the internal probes. However, their application is limited by non-specific binding to intracellular components, resulting in a low target specific signaling and higher background noise.
Recently, a fluorescent dye-labeled immunosensor known as Quenchbody (Q-body) has been successfully used to detect antigens in solutions or on the cell surface. A Q-body is essentially an antibody fragment with the ability to bind a specific antigen.
Against this backdrop, researchers from Japan and Singapore led by Prof. Hiroshi Ueda from Tokyo Institute of Technology (Tokyo Tech), Japan recently reported the applicability of Q-bodies for imaging of intracellular proteins in live cells. Their findings are now published in Chemical Science.
"Since the Q-body works as a site-specific and antigen-dependent imaging tool, we hypothesized that it will display antigen-dependent switchable fluorescence on interacting with the target protein, enabling precise visualization of intracellular dynamics. We demonstrated this by synthesizing a Q-body for p53, a tumor suppressor biomarker protein that plays an important role in DNA repair, cell division, and cell death," explains Prof. Ueda.
The team synthesized a "double" fluorescence dye-labeled Q-body called "C11_Fab Q-body," which displayed better sensitivity and target specificity compared to conventional probes in human cancer cells expressing p53. Since the expression of p53 increases in cancer cells, they electroporated the Q-body in several human cancer cell lines to validate their hypothesis.
Compared to a traditional probe that displayed continuous fluorescence signals even in the absence of p53, the Q-body probe displayed fluorescence signals in "fixed" cells (cells with denatured proteins to halt decomposition) expressing p53. Moreover, the Q-body probe could visualize both wild (control) and mutant type p53 in fixed cell samples.
Further, the team observed fluorescence signals with 8-fold higher intensity in live human colon cancer cell lines with p53 expression as compared to the negatives. Interestingly, the Q-body was stable in the long term, displaying fluorescence intensity changes with experimentally induced changes in p53 levels.

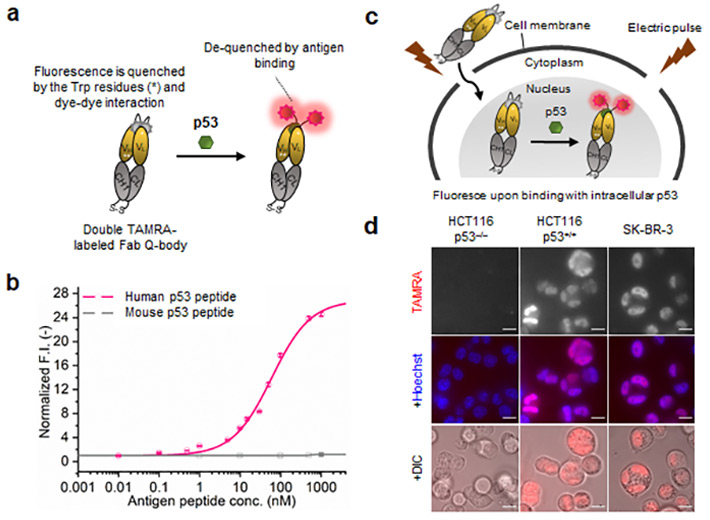

Flow cytometry revealed higher immunofluorescence with Q-body in cells expressing p53. Furthermore, on sorting, the ratio and fluorescence signal of these cells was significantly higher (see Fig. 1) compared to the others (with or without Q body).
What are the implications of these findings? Prof. Ueda answers, "The existing techniques are unable to provide precise imaging of less abundant intracellular targets with high specificity and sensitivity. In this context, our study demonstrates the potential of Q-bodies in live cell imaging for better visualization of dynamical intracellular changes, and provides an approach for intracellular antigen-specific sorting of live cells using a Q-body."
Going ahead, we can expect the development of many more Q-bodies for visualizing several other intracellular biomarkers, opening doors to improved cell-based therapeutic development and cancer research.
Reference
Authors : |
Yancen Dai1, Yuko Sato2, Bo Zhu3, Tetsuya Kitaguchi3, Hiroshi Kimura2, Farid J. Ghadessy4 and Hiroshi Ueda3* |
Title of original paper : |
Intra Q-body: an antibody-based fluorogenic probe
for intracellular proteins that allows live cell
imaging and sorting
|
Journal : |
Chemical Science |
DOI : |
|
Affiliations : |
1Graduate School of Life Science and Technology, Tokyo Institute of Technology 2Cell Biology Center, Institute of Innovative Research, Tokyo Institute of Technology 3Laboratory for Chemistry and Life Science, Institute of Innovative Research, Tokyo Institute of Technology 4Disease Intervention Technology Laboratory, Institute of Molecular and Cellular Biology, A*STAR |
